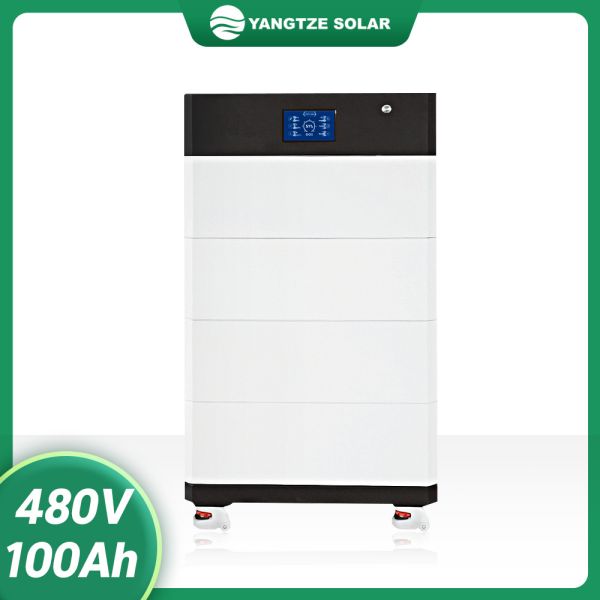

480V 100Ah Stackable Lithium Batteries Power Expansion Freely Assemble
Product Description:
Our stackable lithium batteries are the perfect solution for your portable power needs. Our custom-designed cells provide compact energy storage that is both lightweight and reliable. The chemistry used for these cells is lithium, which is known for its excellent energy density. This makes them ideal for compact energy storage, such as in portable power supplies.
These cells are also rechargeable, meaning you won't have to worry about constantly having to replace them. The capacity of each cell can be customized to meet your specific needs and requirements. Furthermore, these cells also feature a protection circuit that ensures that they are safe to use.
To provide our customers with peace of mind, our stackable lithium batteries are also certified by CE/TUV/MSDS/UN38.3. This means that they have been rigorously tested and are safe to use in a variety of applications. Invest in our stackable lithium batteries today and enjoy the compact energy storage and portable power supplies that they provide.
Features:
- Product Name: Stackable Lithium Batteries
- Capacity: Customized
- Protection Circuit: Yes
- Chemistry: Lithium
- Rechargeable: Yes
- Rechargeable Lithium Units: Yes
- Modular Power Cells: Yes
- Modular Power Cells Protection Circuit: Yes
- Certifications: CE/TUV/MSDS/UN38.3
Technical Parameters:
Electrical Characteristics | Nominal Voltage | 480V |
| Nominal Capacity | 100Ah |
| Energy | 48000Wh |
| Internal Resistance(AC) | ≤20mΩ |
| Cycle Life | >3500 cycles @ 1C 80% DOD |
| Months Self Discharge | <3% |
| Efficiency of Charge | 100% @0.5C |
| Efficiency of Discharge | 96~99% @1C |
| | Charge Voltage | 547.5±0.2V |
| Charge Mode | 0.2C to 547.5V, then 547.5V, charge current to 0.02C(CC/CV) |
| Charge Current | 50A |
| Max. Charge Current | 50A |
| Charge Cut-off Voltage | 550.5±0.2V |
|
Standard Discharge
| Continuous Current | 100A |
| Max.Pulse Current | 120A(<3s) |
| Discharge Cut-off Voltage | 375V |
| | Charge Temperature | 0℃ to 55℃ (32F to 131F) @60±25% Relative Humidity |
| Discharge Temperature | -20℃ to 60℃ (-4F to 140F) @60±25% Relative Humidity |
| Storage Temperature | -20℃ to 45℃ (-4F to 113F) @60±25% Relative Humidity |
| IP Class | IP65 |
|
Mechanical
| Plastic Case | ABS/Metal |
| Approx.Dimensions | 565*460*2040mm/Customized |
| Approx.Weight | 440kg |
Applications:
Stackable Lithium Batteries are an ideal choice for portable power supply solutions. Interchangeable cells can be conveniently customized to suit your needs. The multi-layered batteries come with a 10-year warranty and are certified by CE/TUV/MSDS/UN38.3. The long-lasting lithium chemistry ensures maximum capacity and superior performance. With these stackable lithium batteries, you get the assurance of reliable portable power supplies.
Customization:
Customize Stackable Lithium Batteries
- Protection Circuit: Yes
- Product Name: Stackable Lithium Batteries
- Warranty: 10 Years
- Capacity: Customized
- Chemistry: Lithium
- Applications: Lithium-Powered Devices, Interchangeable Cells, Portable Power Supplies
Support and Services:
Our Stackable Lithium Batteries come with the following technical support and services:
- 24-hour customer service and technical support
- Online product documentation
- On-site service and maintenance
- Free software updates and upgrades
- Warranty and repair services
- Replacement parts and accessories
Packing and Shipping:
Packaging and Shipping of Stackable Lithium Batteries
Stackable lithium batteries must be packaged and shipped according to the following guidelines:
- Packaging: Batteries must be packed in an approved container with an inner liner. The container must be lined with non-conductive materials, such as foam or plastic. The container must be sealed and labeled with the appropriate hazardous material shipping label.
- Shipping: The batteries must be shipped with a shipping document that specifies the hazardous material and UN/NA number. The batteries must be transported in compliance with all applicable laws and regulations.
